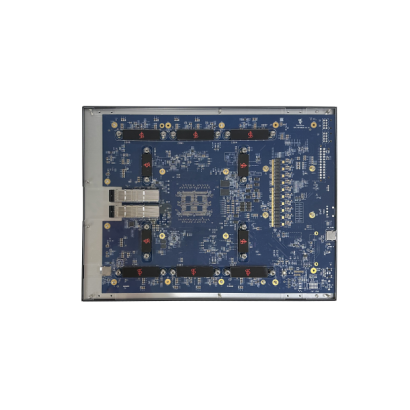

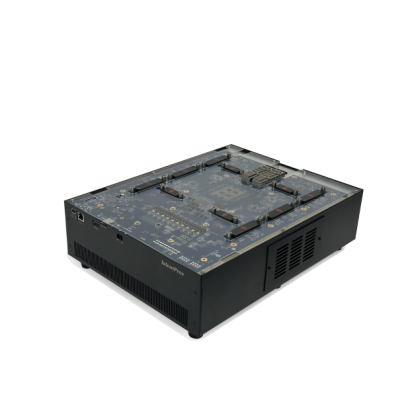

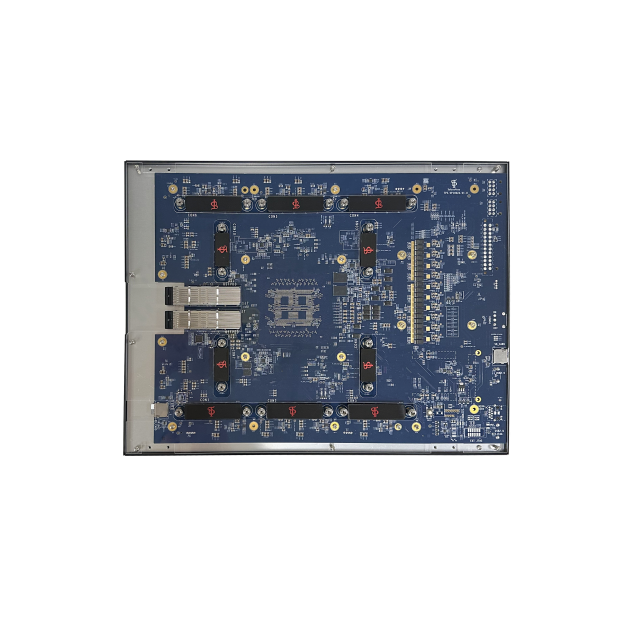

TPS-VP1902 ID+
Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.
Massive Capacity & Scalability
Supports ultra-large Logic Cell requirements with exceptional vertical and horizontal scalability.
Advanced Connectivity
Equipped with high-speed transceivers to ensure data transmission stability in complex system integration.
Smart Management
Built-in intelligent monitoring system automatically detects voltage and temperature to ensure hardware safety.
Key Driver for Accelerating Large-Scale SoC Development
As SoC design complexity continues to rise, traditional software simulation can no longer meet modern development demands. The TPS-VP1902 ID+, leveraging 7nm advanced process technology, provides clock frequencies near real-chip operation, effectively solving verification challenges for massive logic operations.
- High-Performance Verification: Provides clock frequencies near real-chip operation to precisely simulate real-world scenarios.
- Flexible Scalability: Supports a wide range of Daughter Card specifications to meet diverse industrial interface requirements.
- Rapid Deployment: Integrates Rapid2 Partition Analysis tools to significantly shorten design partitioning and compilation time.
- High-Speed Signal Integrity: Optimized routing for 56Gbps (PAM4) environments ensures error-free data transmission and accelerates Time-to-Market.
Standard Configuration
Built-in industrial-standard interfaces supporting diverse debugging and access needs:
Advanced Security
Protects enterprise core design IP with military-grade security encryption:
Smart Management & Reliability
The TPS-VP1902 ID+ features built-in real-time environmental detection technology. Real-time monitoring of voltage, current, and temperature with automatic shut-down to prevent damage from over-limit conditions. This proactive protection design effectively prevents hardware wear during the R&D process, ensuring the stability of the verification environment.
Technical Specifications
| TPS-VP1902 ID+ Hardware Resources | |
|---|---|
| Process Technology | 7nm UltraScale+ Architecture |
| System Logic Cell | 18,507 K |
| VCCINT Core Power | 170A |
| Internal Memory | 858 Mb (Block RAM: 239Mb, Ultra RAM: 619Mb) |
| Transceivers Max Rate | GTYP: 16 Gbps / GTM: 56Gbps (PAM4) |
| XP I/O Resource | 924 (via 6 High-Speed Connectors) |
| HD I/O Resource | 44 |
| GTYP Transceivers | 64 (TX/RX) |
| QSFP-DD Interface | 16 (TX/RX), 56Gbps (PAM4) Support |
| DDR4 SODIMM Support | 16GB / 2.4Gbps * 2 Slots |
| PCIe Support | Gen5 / Gen4 / Gen3 Compatible |
| MIPI D-PHY | 2.5 Gbps per lane |
Ready to Accelerate Your Innovation?
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-VP1902 ID+.
