TPS-VU19P FPGA Platform ID+

TPS-VU19P FPGA Platform ID+

Virtex UltraScale+ XCVU19P

• System Logic Cells (K):8,938
• DSP Slices:3,840
• Memory (Mb): 165.9
• The system has 1280 general purpose I/Os and 24 GTY transceivers on 10 high-speed connectors.
• DDR4 SODIMM * 2 ( Total: 32GB )
/
/

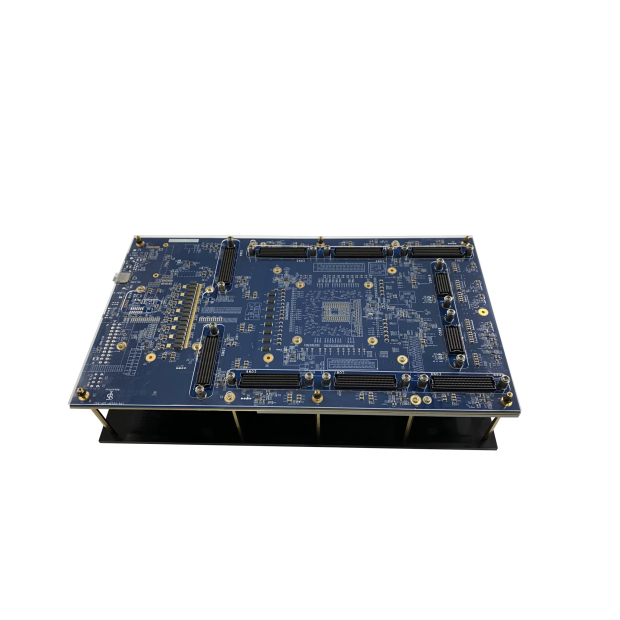

  • LINE_ALBUM_TPS-VU19P-IDP_220110_2.jpg

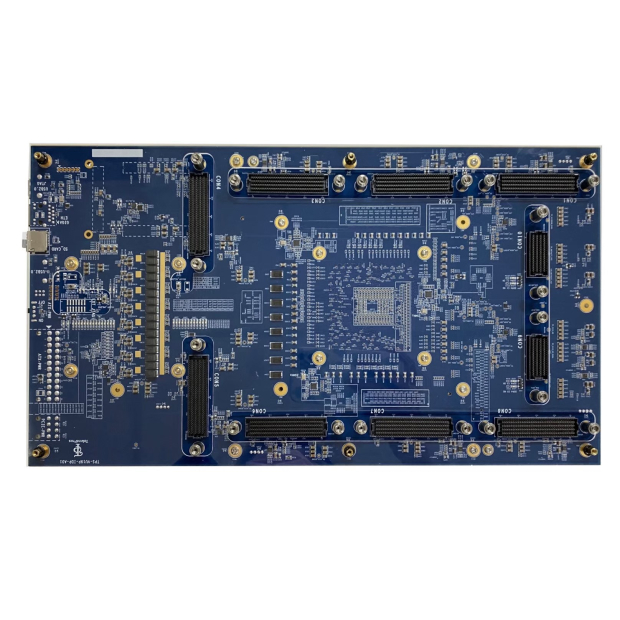

  • LINE_ALBUM_TPS-VU19P-IDP_220110_5.jpg
DETAIL

TPS-VU19P ID+

Empowering Large-Scale SoC Innovation with Scalable Capacity and Intelligent Control.

High-capacity, smart monitoring, and remote deployment: TPS m-View makes hardware verification simpler and more reliable.

Massive Capacity & Scalability

Supports up to 8,938K Logic Cells for massive SoC verification with seamless expansion.

Advanced Connectivity

Equipped with high-speed transceivers and optimized I/O to ensure stable system integration.

Smart Management & Reliability

Integrated management hub for remote programming, self-diagnosis, and real-time health monitoring.

Reliable Power for Large-Scale SoC Development

The TPS-VU19P ID+ is designed to overcome the limitations of software simulation. Featuring the 16nm XCVU19P FPGA, it provides the high-performance logic density and memory capacity required for today's most demanding verification tasks.

  • High-Performance Verification: Powered by the XCVU19P FPGA, featuring 8,938K logic cells and 165.9Mb of internal memory.
  • Flexible Scalability: Supports various Daughter Card specifications to meet diverse industrial interface requirements.
  • Smart Management: Supports remote burning, self-tests, and real-time power/temperature monitoring. Automatic shut-down protection ensures a foolproof development process.

Configuration

Supports standard industrial interfaces for diverse debugging and access needs:

USB 2.0 / Gigabit Ethernet / JTag / Micro SD Card

Security

Secures core design IPs with advanced encryption standards:

Support AES-Key 256-bit Encryption

Intelligent Protection & Safety

Real-time monitoring of voltage, current, and temperature with automatic shut-down to prevent damage from over-limit conditions. This proactive design effectively minimizes hardware risks, ensuring a stable and secure verification environment.

Technical Specifications

TPS-VU19P ID+ Hardware Resources
Process Technology 16nm Architecture
System Logic Cell 8,938 K
VCCINT Core Power 200A
Internal Memory 165.9 Mb (Block RAM: 75.9Mb, Ultra RAM: 90Mb)
Transceivers Max Rate GTYP: 16 Gbps
HP I/O Resource 1280
HD I/O Resource 48
GTY Transceivers 24 (TX/RX)
DDR4 SODIMM Support 16GB / 2.4Gbps * 2 Slots
PCIe Support Gen4 / Gen3 Compatible
MIPI D-PHY 1.5 Gbps

Ready to Accelerate Your Innovation?

Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the TPS-VU19P-ID+.
