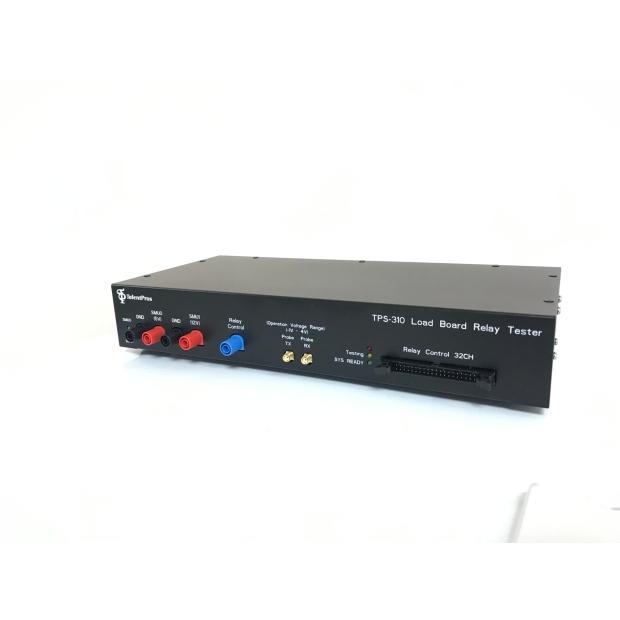

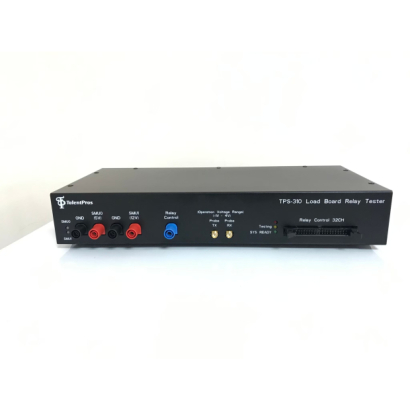

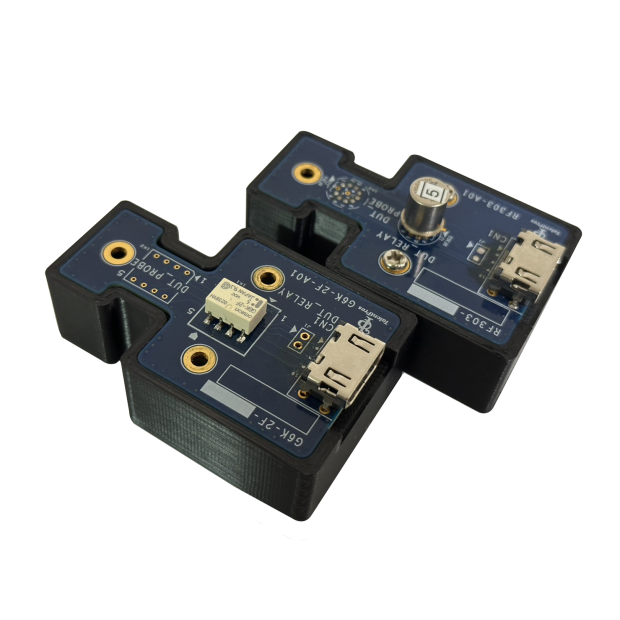

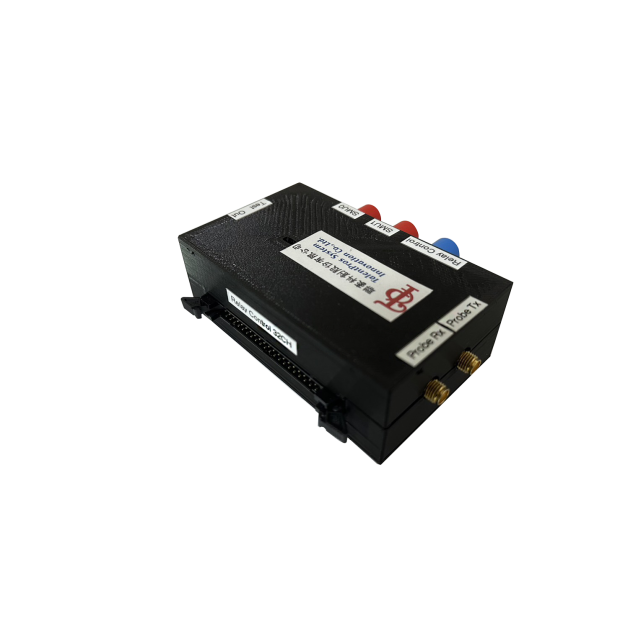

TPS-310 Relay & Component Tester
Precision Redefined: Capturing Micro-Level Dynamics with Nanosecond Accuracy.
10μs Bounce Analysis
High-resolution time measurement to precisely capture microsecond-level contact bounce during relay switching.
100MHz Digital Pattern
Built-in pattern generator and adjustable comparator supporting high-speed signal verification up to 100MHz.
Intelligent FIMV Support
Multi-range current sensing (1μA~10mA) for high-precision physical parameter testing of R-C networks and resistors.
Overcoming Measurement Bottlenecks for Stable R&D Workflows
The TPS-310 is a core module tailored for the Automated Test Equipment (ATE) market. With flexible power regulation and high-speed data bridging, it ensures superior measurement precision while simplifying complex tuning through an intuitive UI, significantly accelerating your Time-to-market.
- High-Precision Resistance Measurement: Supports low-resistance testing down to 0.1 Ω, ensuring flawless contact conduction quality.
- Flexible Voltage Output: Dynamic voltage adjustment via UI (±10% tolerance), compatible with 5V and 12V component standards.
- System-Level Control Interface: Rapid USB connectivity for real-time data comparison and automated reporting via laptop.
- Superior Signal Integrity: Optimized signal path design to maintain purity and stability for 100MHz high-frequency test patterns.
Technical Measurement Parameters
| TPS-310 Interface & Measurement Specifications | |
|---|---|
| Power Control | Adjustable Levels (±10% Tolerance) | 5V (3.5V~5.5V) | 12V (9.5V~12V) |
| Bounce Time Analysis | Resolution: 10μs High-Precision Timing |
| Resistance (RES) | SPEC. 0.1 Ω Ultra-Low Resistance Support |
| R/C Network Test | FIMV Mode: 1μA / 10μA / 100μA / 1mA / 10mA Ranges |
| Signal Performance | Digital Pattern: 100MHz Hi/Lo | TX: Pattern Gen | RX: Adjustable Level Comparator |
| Control Interface | Relay Switching Control (RLY CTL) | USB Data Sync for PC/Notebook |
| System Power | +24V Adapter Input | Supports +12V / +5V Level Relay Power |

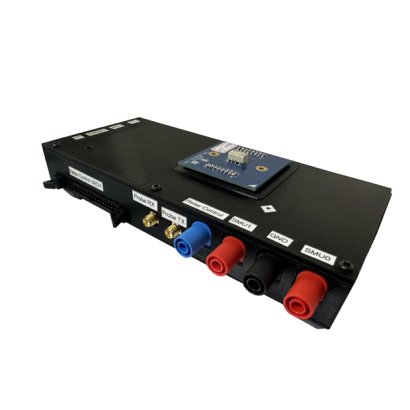

| Probing Interface | TX Probe: Output Pattern Gen | RX Probe: Analysis Scope Interface |
Request Full Technical Documentation
Detailed datasheets, API guides, and UI setup manuals for the TPS-310 are available upon request.
Please contact our technical team for more information regarding Relay & Component Testing solutions.
