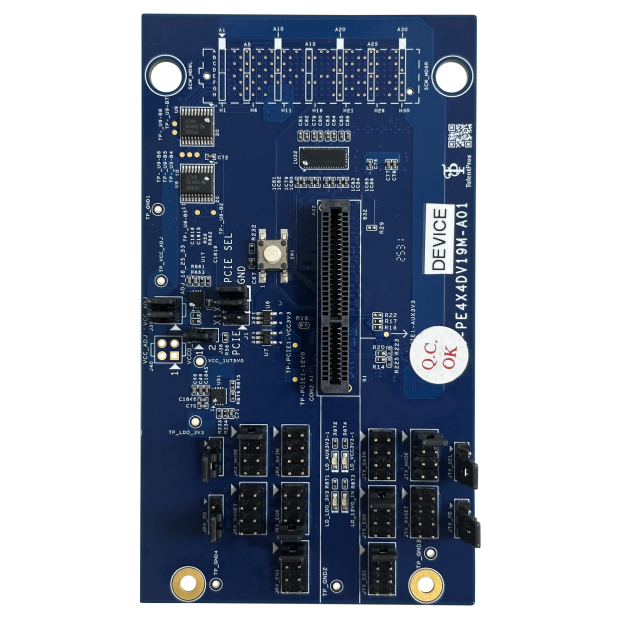

PCIe Gen3 X4 (Device) Board
Reliable High-Speed Data Link for FPGA Prototyping Systems.
High Throughput
Supports PCIe Gen3 X4 standard, providing high-performance transmission bandwidth at 8 GT/s per lane.
Fast-to-Market
Pre-validated hardware modules help teams skip interface development processes and accelerate time-to-market.
Universal Fit
Seamlessly compatible with the full range of TalentPros FPGA motherboards, ensuring environment consistency.
The Communication Foundation for Enhanced SoC Verification
In modern large-scale SoC development, PCIe protocol verification is critical for system stability. TalentPros' PCIe Gen3 X4 (Device) Board is a professional daughter card designed to meet R&D teams' demands for high-speed transmission and low-latency validation.
- High-Speed Signal Integrity: Precision routing and strict impedance control effectively reduce signal attenuation and noise interference.
- Shorten Time-to-Market: Plug-and-play expansion modules eliminate tedious circuit development time, speeding up product validation.
- Flexible Verification Scenarios: Supports data exchange testing as a device endpoint with a host, suitable for various high-speed data access scenarios.
- Industrial-Grade Quality: High-performance electronic components support long-term, high-intensity stress testing environments.
Technical Specifications
| PCIe Gen3 X4 (Device) Board Details | |
|---|---|
| PCIe Standard | PCI Express Specification Rev 3.0 |
| Lane Configuration | X4 Lanes (8 GT/s per lane) |
| Board Mode | Device / Endpoint Mode |
| Compatibility | TalentPros VU19P / VU13P / VU9P / KU085 / KU115 |
| Signal Integrity | Differential Impedance 85/100 Ohm Controlled |
| Form Factor | Standard Daughter Card Interface |
Request Full Specifications
Detailed datasheets and technical documentation are available upon request.
Please contact our team for more information regarding the PCIe Gen3 X4 (Device) Board.
